Synthesis, characterization and photocatalytic activity of titano-phosphate glasses

Abdelillah Shaim, Elhassan Amaterz, Yassine Naciri, Aziz Taoufyq, Bahcine Bakiz, Mohamed Ezahri, Abdeljalil Benlhachemi, Abdelkarim Ouammou, Abdelkrim Chahine

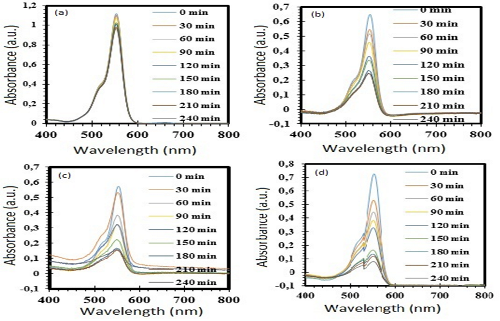

Photocatalytic activity of (50-x/2)Na2O-xTiO2–(50-x/)P2O5 glasses (0 ≤ x ≤ 10 mol%) has been studied with an increase in the TiO2 content using UV-Visible spectrophotometry. Thermal properties were carried out from DTA measurement, and the variation of glass structure was investigated by Fourier Transform Infrared (FT-IR). The first addition of the TiO2 up to 3 mol% entrained depolymerization of the phosphate skeleton (PO3) chains in the binary 50Na2O–50P2O5 glass, resulting in poor cross-linking, which in turn the glass network becomes less rigid and the glass transition temperature (Tg) was decreased. Beyond this value, FT-IR reveals the formation of P–O–Ti bonds, which increases the cross-link density in the glass network and therefore increases Tg of the glasses. The photocatalytic activity results showed that these glasses ensure the discoloration of Rhodamine B by a removal efficiency of about 94% after 4h of irradiation.

Full Text:



- A. Shaim, M. Et-Tabirou, L. Montagne, G. Palavit, Role of bismuth and titanium in Na2O-Bi2O3-TiO2-P2O5 glasses and a model of structural units. Materials research bulletin, 2002, 37(15), 2459-2466.

- K. El-Egili, Structure and Physical Properties of TiO2-Li2O-P2O5 Ion Conducting Glasses. Quantum Matter. 2016, 5(2), 227-232.

- V. Rajendran, A. G. Devi, M. Azooz & F. H. El-Batal, Physicochemical studies of phosphate based P2O5-Na2O-CaO-TiO2 glasses for biomedical applications. Journal of non-crystalline solids 2007, 353(1), 77-84.

- E. M. Vogel, S. G. Kosinski, D. M. Krol, J. L. Jackel, S. R. Friberg, M. K. Oliver & J. D. Powers, Structural and optical study of silicate glasses for nonlinear optical devices. Journal of non-crystalline solids, 1989, 107(2-3), 244-250.

- G. D. L. K. Jayasinghe, P. W. S. K. Bandaranayake, M. A. K. L. Dissanayake & R. P. Gunawardane, Ionic conductivity of glasses in the system Li2O-P2O5-TeO2. Solid State Ionics, 1995, 78(3-4), 199-202.

- B. Tiwari, M. Pandey, V. Sudarsan, S. K. Deb & G. P. Kothiyal, Study of structural modification of sodium aluminophosphate glasses with TiO2 addition through Raman and NMR spectroscopy. Physica B: Condensed Matter, 2009, 404(1), 47-51.

- T. Okura, T. Miyachi & H. Monma, Properties and vibrational spectra of magnesium phosphate glasses for nuclear waste immobilization. Journal of the European Ceramic Society, 2006, 26(4), 831-836.

- P. Bergo, S. T. Reis, W. M. Pontuschka, J. M. Prison & C. C. Motta, Dielectric properties and structural features of barium-iron phosphate glasses. Journal of non-crystalline solids, 2004, 336(3), 159-164.

- F. F. Sene, J. R. Martinelli & L. Gomes, Optical and structural characterization of rare earth doped niobium phosphate glasses. Journal of non-crystalline solids, 2004, 348, 63-71.

- S. Kumar, P. Vinatier, A. Levasseur & K. J. Rao, Investigations of structure and transport in lithium and silver borophosphate glasses. Journal of Solid State Chemistry, 2004, 177(4), 1723-1737.

- T. Y. Wei, Y. Hu & L. G. Hwa, Structure and elastic properties of low-temperature sealing phosphate glasses. Journal of non-crystalline solids, 2001, 288(1), 140-147.

- J. Fu, Photocatalytic properties of TiO2-P2O5 glass ceramics. Materials Research Bulletin, 2011, 46(12), 2523-2526.

- R. K. Brown, D. R. Tallant, W. L. Warren, A. McIntyre & D. E. Day, Spectroscopic studies of the structure of titanophosphate and calcium titanophosphate glasses. Physics and chemistry of glasses, 1997, 38(6), 300-306.

- A. Shaim & M. Et-Tabirou, Role of titanium in sodium titanophosphate glasses and a model of structural units. Materials chemistry and physics, 2003, 80(1), 63-67.

- - U. Hoppe, R. K. Brow, B. C. Tischendorf, A. Kriltz, P. Jóvári, A. Schöps & A. C. Hannon, Structure of titanophosphate glasses studied by

X-ray and neutron diffraction. Journal of noncrystalline solids, 2007, 353(18), 1802-1807.

- M. Navarro, M. P. Ginebra, J. Clément, M. Salvador, A. Gloria & J. A. Planell, Physicochemical Degradation of Titania-Stabilized Soluble Phosphate Glasses for Medical Applications. Journal of the American Ceramic Society, 2003, 86(8), 1345-1352.

- J. Pospíšil, P. Mošner & L. Koudelka, Thermal behaviour and crystallization of titanium–zinc borophosphate glasses. Journal of thermal

analysis and calorimetry, 2006, 84(2), 479-482.

- L. Montagne, G. Palavit, A. Shaim, M. EtTabirou, P. Hartmann & C. Jäger, Structure and ionic conductivity of sodium titanophosphate

glasses. Journal of non-crystalline solids, 2001, 293, 719-725.

- C. Rousselot, E. El Rhess, J.P. Malugani, R. Mercier, M.F. Mercier, Correlations between structure and conductivity in NaPO3-TiO2 glasses. Solid State Ionics, 1992, 58, 71-76.

- H. Fatma ElBatal, UV-visible, infrared, Raman and ESR spectra of gamma-irradiated TiO2-doped soda lime phosphate glasses, Indian J. Pure Appl. Phys., 2009, 47, 631-642

- S. Krimi, A. El Jazouli, L. Rabardel, M. Couzi, I. Mansouri and G. Le Flem. Glass formation in Na2O-TiO2-P2O5 system. J. Solid State Chem. 102 (1993) 400-407.

- A. Chennah, Y. Naciri, A. Taoufyq, B. Bakiz, L. Bazzi, F. Guinneton, S. Villain, J.R. Gavarri, A. Benlhachemi, , Electrodeposited zinc phosphate hydrate electrodes for electrocata-lytic applications. J. Appl. Electrochem., 2019, 49 (2) 163-177.

- A. Chennah, Y. Naciri, H. Ait Ahsaine, A. Taoufyq, B. Bakiz, L. Bazzi , F. Guinneton, J. R. Gavarri & A. Benlhachemi, Electrocatalyt-ic properties of hydroxyapatite thin films elec-trodeposited on stainless steel substrates. Medi-terranean Journal of Chemistry, 2018, 6(6), 255-266

- I.V. Tananev, Atlas of infraredspectra of condensed phosphates, IZV. Nouka, Moscow, 1985.

- R. M. Almeida & J. D. Mackenzie, Infrared absorption and structure of chlorophosphate glasses. Journal of Non-Crystalline Solids, 1980, 40(1-3), 535-548.

- D. E. C. Corbridge, & E. J. Lowe, The infra-red spectra of inorganic phosphorus compounds. Part II. Some salts of phosphorus oxy-acids. Journal of the Chemical Society (Resumed), 1954, 4555-4564.

- A. Rulmont, R. Cahay, M. Liegeoisduyckaerts & P. Tarte, Vibrational spectroscopy of phosphates-some general correlations between structure and spectra. European Journal of Solid State and Inorganic Chemistry, 1991, 28(1), 207-219.

- C. Dayanand, G. Bhikshamaiah, V. Jaya Tayagaraju, M. Salagram, A. S. R. Krishna Murthy, J. Mat. Sci., 1996, 31, 1945-1967.

- C. Xie, Z. Xu, Q. Yang, B. Xue, Y. Du & J. Zhang, Enhanced photocatalytic activity of titania-silica mixed oxide prepared via basic hydrolyzation. Materials Science and Engineering: B, 2004, 112(1), 34-41.

- Z. Li, B. Hou, Y. Xu, D. Wu & Sun, Y. Hydrothermal synthesis, characterization, and photocatalytic performance of silica-modified titanium dioxide nanoparticles. Journal of colloid and interface science, 2005, 288(1), 149-154.

- L. Montagne, G. Palavit & R. Delaval, Effect of ZnO on the properties of (100-x)(NaPO3)-xZnO glasses. Journal of non-crystalline solids, 1998, 223(1-2), 43-47.

- A. Chahine, M. Et-Tabirou, M. Elbenaissi, M. Haddad & J. L. Pascal, Effect of CuO on the structure and properties of (50-x/2)Na2O-xCuO-(50-x/2)P2O5 glasses. Materials chemistry and physics, 2004, 84(2), 341-347.

- P. Yuvasree, K. Nithya, N. Neelakandeswari, N. Rajasekaran, K. Uthayarani, M. Chitra & S. S. Kumar, Phytochemical preparation, Characterization and Photocatalytic applications of Ag-TiO2 nanocatalyst. In Advanced Materials Research, 2015, 1086, 1-6.

- N. Xu, Z. Shi, Y. Fan, J. Dong, J. Shi & M. Z. C. Hu, Effects of Particle Size of TiO2 on Photocatalytic Degradation of Methylene Blue in Aqueous Suspensions. Industrial and Engineering Chemistry Research, 1999, 38, 373.
