Synthesis, characterization and crystal structure of a dodeca-nuclear cobalt (II)cube-octahedron

Ramadan Mohamed Elmehdawi

Abstract

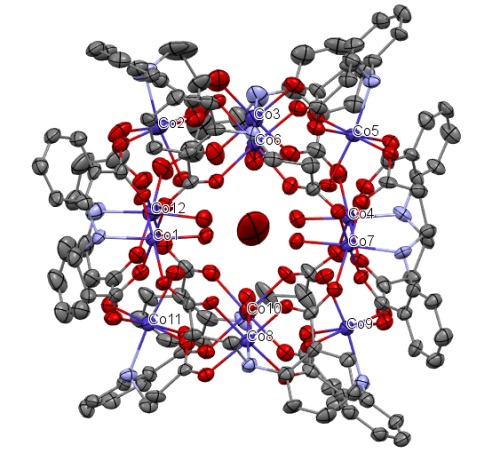

The new cobalt (II) complex, [Co12 (cpip)12(H2O)12].18.56H2O where H2cpip = 2-(carboxy-phenyl) amino-propanoic acid, was isolated as pink-like prism crystals from the reaction of Co(NO3)2.6H2O and H2cpip in an ethanolic solution. The complex was characterized by Fourier Transform Infrared Spectroscopy (FTIR) and X-ray single-crystal diffraction. The symmetric unit of the title complex contains twelve cobalt atoms arranged in a cube-octahedron. Each divalent cation of cobalt is iso-octahedrally coordinated to four oxygen atoms of two cpip2- ligands in the equatorial plane. The axial plane is occupied by an amino nitrogen atom of one of the cpip2- ligands and an oxygen atom of a water molecule. The lattice water molecule in the metallocycle cavity involved OH­­­O hydrogen bonding with the coordinated water molecules.


Full Text:

PDF

References


- Gatteschi, R. Sessoli, Quantum Tunneling of Magnetization and Related Phenomena in Molecular Materials, Angew. Chem. Int. Ed., 2003, 2, 268–297.

- W. Wernsdorfer, N. Aliaga-Alcalde, D. N. Hendrickson, G. Christou, Exchange-biased quantum tunneling in a supramolecular dimer of single-molecule magnets, Nature, 2002, 416, 406–409.

- R. Sessoli, H. L. Tsai, S. A. Wang, B. J. Vincent, D. Gatteschi, G. Christou, D. Hendrickson, High-spin molecules: [Mn12O12(O2CR)16(H2O)4],

J. Am.Chem. Soci., 1993, 5, 1804-1816.

- J. K, Mitchell, K. A. Abboud, G. Christou, Atomically-precise colloidal nanoparticles of cerium dioxide, Nature communications, 8, 2017, 1-7.

- F. Dimakopoulou, C. G. Efthymiou, C. O’Malley, A. Kourtellaris, E. Moushi, A. Tasiopooulos, S. P. Perlepes, P. McArdle, E. Costa-Villén, J. Mayans, C. Papatriantafyllopoulou, Novel Co5 and Ni4 Metal Complexes and Ferromagnets by the Combination of 2-Pyridyl Oximes with Polycarboxylic Ligands, Molecules, 2022, 27, 4701.

- M. Murugesu, R. Clérac, W. Wernsdorfer, C. E. Anson, A. K. Powell, Hierarchical Assembly of {Fe13} Oxygen‐Bridged Clusters into a Close‐Packed Superstructure, Angew. Chem. Int. Edn., 2005, 44, 6678–6682.

- M. Cavallini, J. Gomez-Seguara, D. Ruiz-Molina, M. C. Albnetti, R. Concepcio, J. Veciana, F. Biscarini, Magnetic Information Storage on

Polymers by Using Patterned Single‐Molecule Magnets, Angew. Chem. Int. Ed., 2005, 44, 888-891.

- M. Murugesu, W. Wernsdorfer, K. A. Abboud, G. Christou, Single-molecule magnets: A Mn25 complex with a record S= 51/2 spin for a molecular species, J. Am. Chem.Soc., 2004, 126, 4766-4767.

- l. Zheng, Ji. D. Radovan, R. Herchel, Y-H. Lan, A. Powel, M. L. Tong, Anion‐Dependent Facile Route to Magnetic Dinuclear and Dodecanuclear Cobalt Clusters, Eur. J. Inorg., 2010, 2229-2234.

- M. Tombers, J. Meyer, A. Lawicki, V. Zamudio‐Bayer, K. Hirsch, J. T. Lau, B. von Issendorff, A. Terasaki, T. A. Schlathölter, R. A. Hoekstra, Mn12‐Acetate Complexes Studied as Single Molecules. Chemistry–A European Journal, 2022, 28, e202102592.

- L. Abu-sen, R. M. El-mehdawi, R. G. Abuhmaiera, M. N. El-kaheli, M. M. Younes, S. Yeates, J. J. Morrison, J. Raftery, Two-dimensional catena–polymer [[[bis (µ-aqua)(bis (µ-cpiap-K2O1: O2) sodium (I))](µ-chlorido) bis (µ-cpiap-K5N1: O1: O2: O3, O3′) dicopper (II)] bis (µ-aqua)(aqua) bis (cpiap-K2O1, O2) copper (II)] hexa hydrate, Arabian Journal of Chemistry, 2020, 13, 5277-83.

- A. K. Powell, R. Abuhmaiera, Y. Lan, A. M. Ako, E. G. Kostkis, A. Mavrandonakis, W. Klopper, R. Clerac, C. E. Anson, One-dimensional Cu (II) coordination polymers: tuning the structure by modulating the “carboxylate arm, Cryst Eng Comm., 2009, 11, 1089–1096.

- G. M. Sheldrick, Using phases to determine the space group, Acta Cryst., 2018, A74, a353.

- G. M. Sheldrick, A short history of SHELX, Acta Cryst., 2008, A64, 112-122.

- L. J. Farrugia, Ortep-3 for Windows-Aversion ORTEP-III with a Graphical User. Interface (GUI), J.APPL. Crystallogr, 1997, 30,565.

- N. E. Chackov, L. N. Zakharov, A. L. Rheingold, K. A. Abboud, G. Christou, Mixed-Valence MnIIIMnIV Clusters [Mn7O8(O2SePh)8(O2CMe)(H2O)] and [Mn7O8(O2SePh)9(H2O)]: Single-Chain Magnets Exhibiting Quantum Tunneling of Magnetization, Inorg. Chem., 2004, 43, 19, 5919–5930.

- D. Brechin, E. L. Olivier, A. Caneschi, C. Cadiu, S. G. Harris, S. Parson, M. Vonci, R. E. Winpenny, Synthetic and magnetic studies of a dodecanuclear cobalt wheel, Chem.Commun., 2002, 1860-1861.




DOI: http://dx.doi.org/10.13171/mjc02301161661elmehdawi
